Overview

Handcrafted since 2008, WA6 (2nd gen) has set the standard for headphone amplifiers in its class. It can drive full-size headphones and in-ear monitors ranging from 8–600 Ohms with ease. WA6 (2nd gen) is an all-tube design, Class-A, transformer-coupled, single-ended triode (SET) amplifier. Under the hood of the all aluminum chassis is the same clean point-to-point wiring and premium quality parts found in our top tier models. WA6 (2nd gen) is an exceptional headphone amplifier for every music lover.

突出

• Updated to 2nd generation in April 2017

• 2nd gen is a minor update to driver/power tubes from 6v to 13v

• Tubes: 13DE7 driver/power x 2, 5U4G rectifier x 1

• 聚四氟乙烯 （PTFE） 管插座

• Singled-ended Triode, Class-A

• 變壓器耦合，點對點接線

• Pseudo-dual power supply

• RCA input x 1

• HI / LO headphone impedance switch

• 1/4" （6.3mm） 立體聲耳機輸出 （8–600 歐姆）

• ALPS potentiometer and power switch

• 陽極氧化鋁製底盤，有黑色或銀色可供選擇

• Self-biasing with compatible tubes [chart]

• Global voltage (100v–220v) without converter

• Dimensions: 6"(H), 5½"(W), 13"(D), 13 lbs.

• 在美國紐約設計和組裝

• Three-year limited warranty [learn more]

盒子裡

• WA6 (2nd gen) headphone amplifier x 1

• 13DE7 vacuum tube x 2

• 5U4G(5U3C)整流管×1

• 快速入門指南

• UPGRADE [learn more]: Woo Audio PHANTOM DAC cable [1m or 2m length] x 1

*不包括交流電源線和音頻線

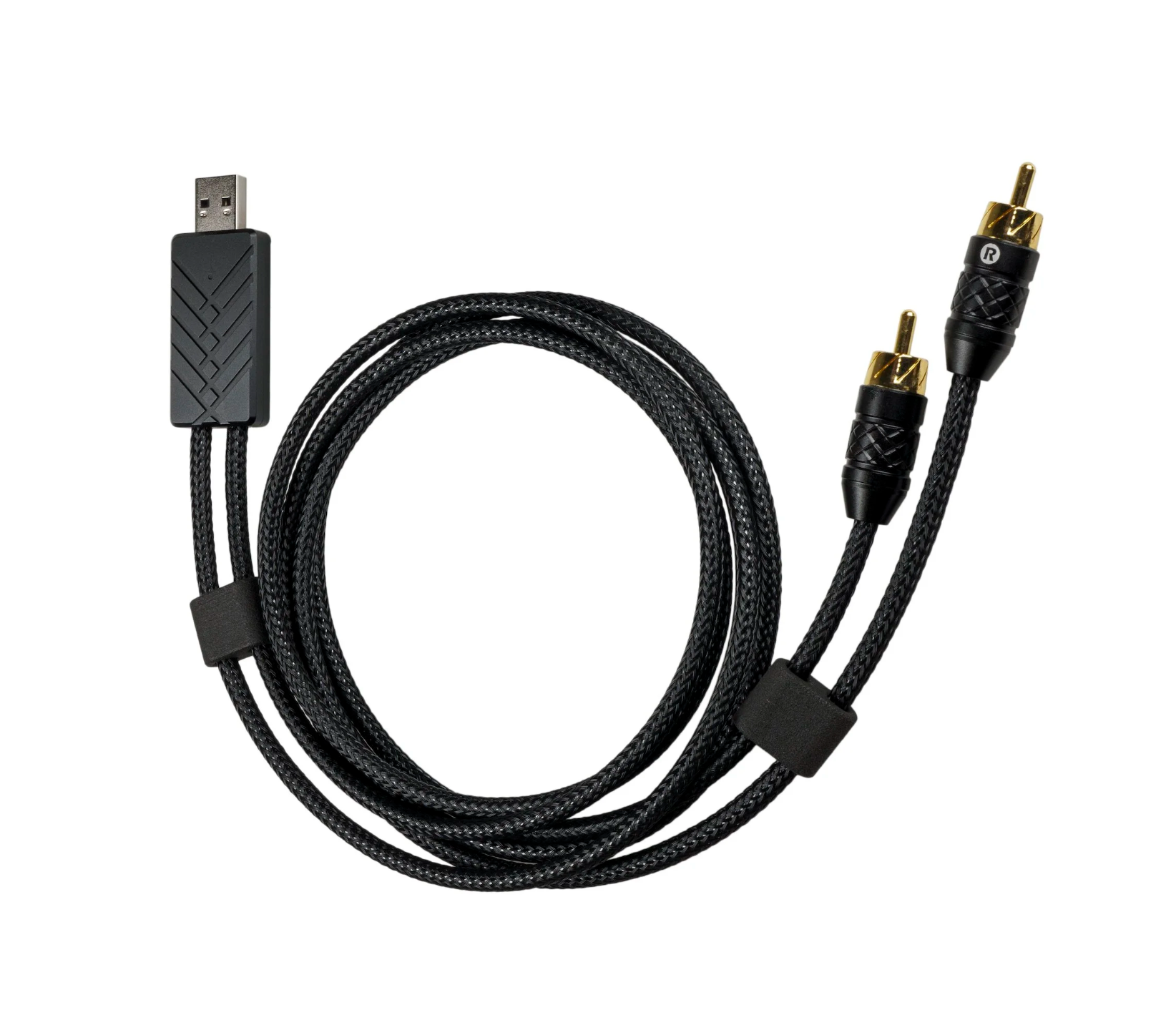

Woo Audio PHANTOM DAC Cable

The Phantom DAC is an add-on that is not included in the stock configuration. Without any other cabling, pairing this with the WA6 (2nd gen) Headphone Amplifier you get everything you need to get started with the best PC audio quality. And with a USB-C adapter, from your phone too!

• MOSFET output stage

• 16 Ω Ultra-low output impedance

• ESS SABRE® audiophile-grade DAC supports

  lossless audio up to 24-bit/384 kHz PCM and

  DSD128/5.6 MHz

• No driver required, plug and play with Windows 10 & 11 and all versions of macOS. Compatible with Apple IOS, Android certified devices, Mac and Windows computers with USB or USB-C / Thunderbolt 3 input

• QUAD DAC™ Technology

• MQA Renderer

• Frequency response: 20Hz - 20kHz

  Maximum volts out: 1.7V unbalanced or 3.4V balanced

• Distortion 0.007%

• Signal to noise ratio 101 dB

• Premium Woo Audio ELEVATION audio cable

• RCA (unbalanced) and XLR (balanced)

• PHANTOM DAC cable sold as a stereo pair (L&R channel)

• Made in New York

• 3-yr warranty
