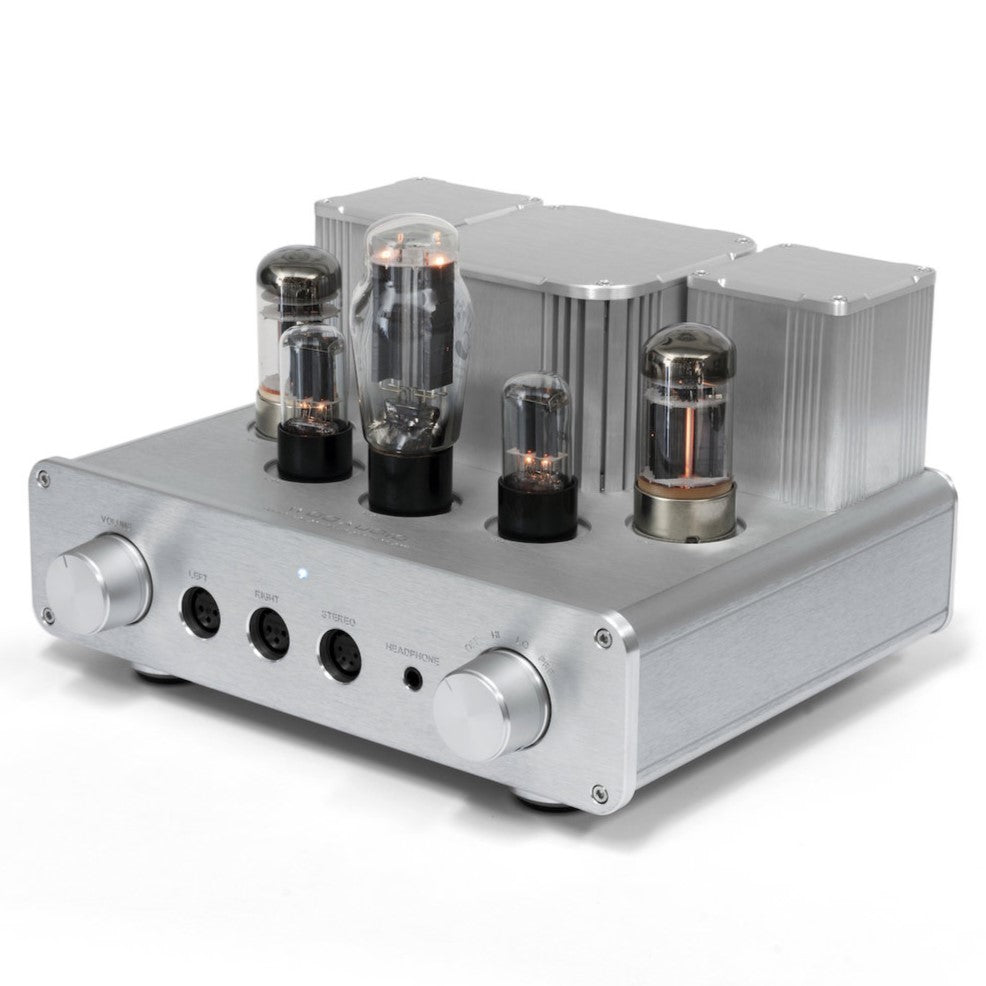

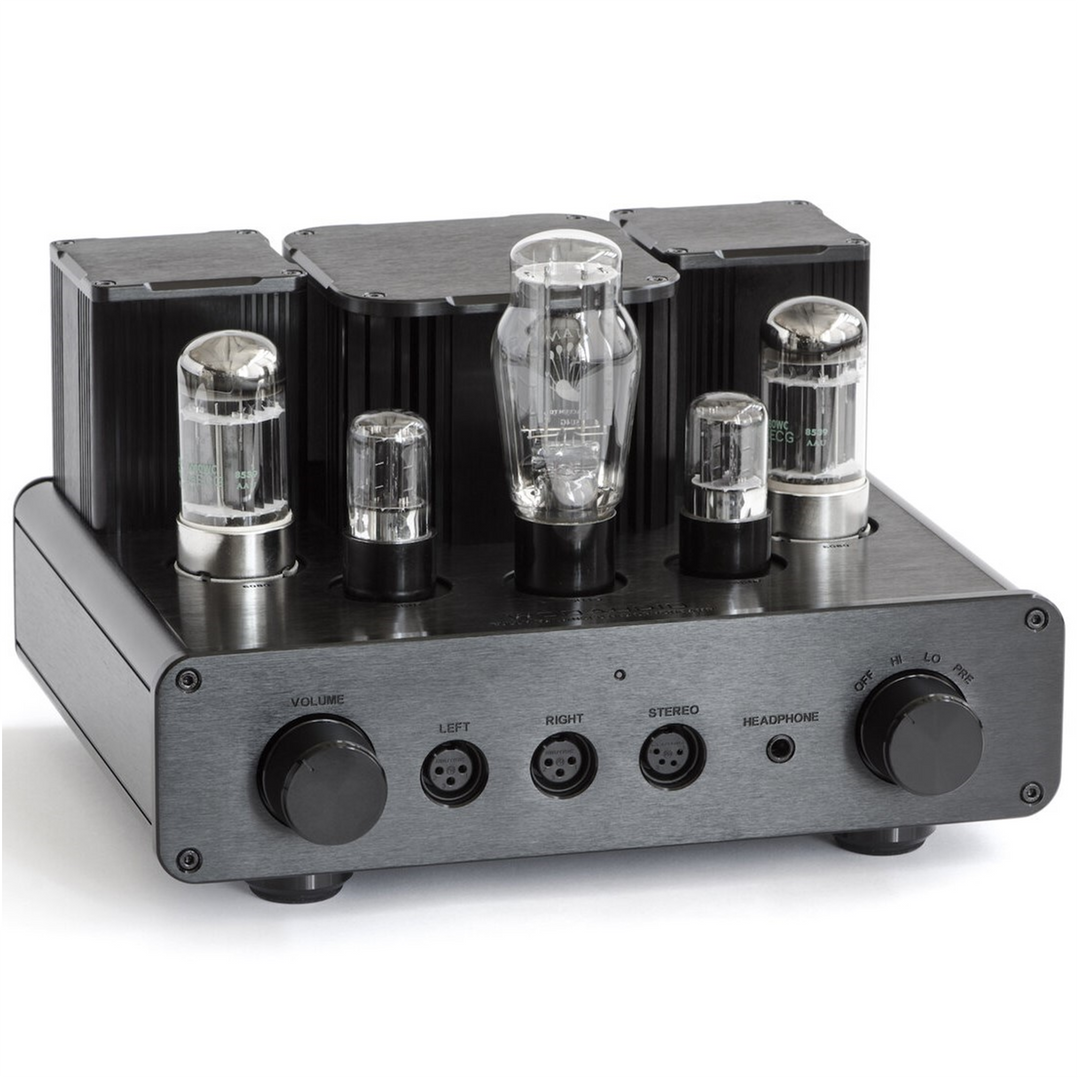

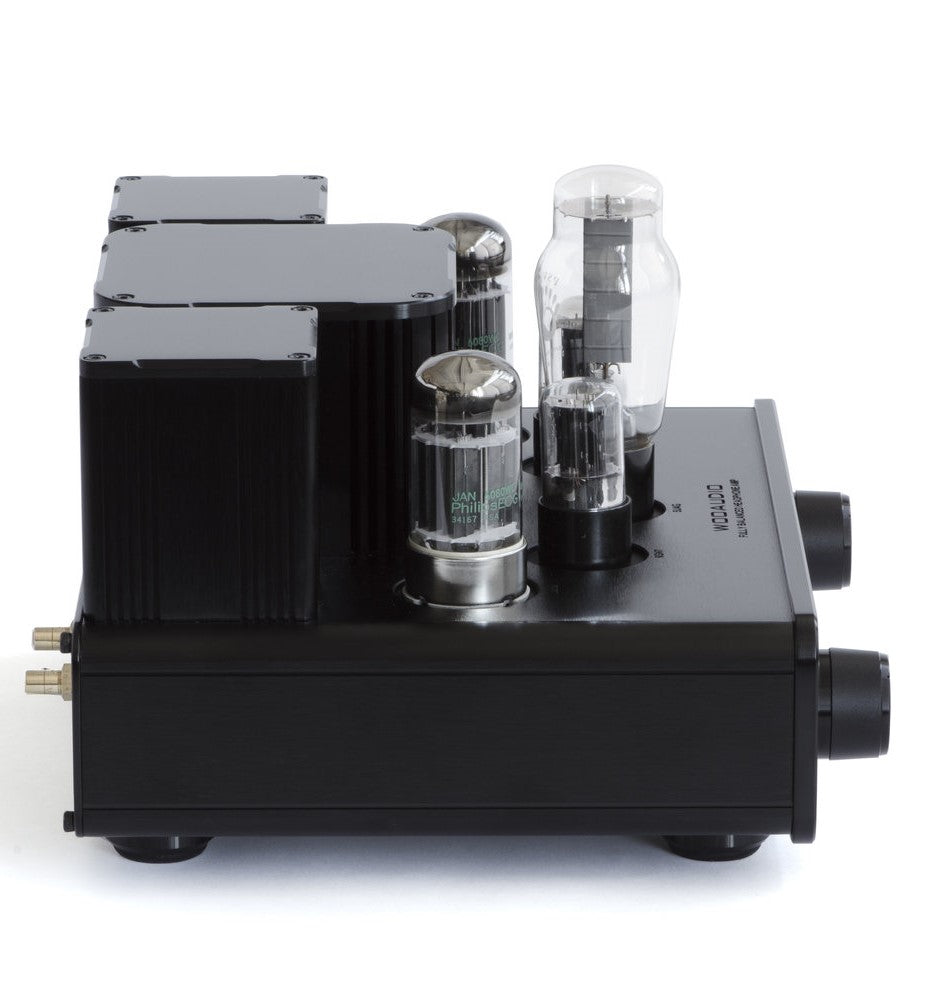

Originally introduced in 2009, WA22 has been an audiophile favorite. New for 2018 is improved sonic performance and preamplifier feature for use with a Hi-Fi system. WA22 (2nd gen) is an all-tube design, fully balanced headphone amplifier and preamplifier. The advantage of a fully balanced system is improved channel separation, more precise soundstage, and imaging. Perfectly suited for the headphone enthusiast and experienced audiophiles seeking flexibility and purest sound.
Updated to 2nd generation in March 2018
Tubes: 6SN7 driver x 2, 6080 power x 2, 5U4G rectifier x 1
聚四氟乙烯 (PTFE) 管插座
ALPS RK27 4-channel balanced smooth potentiometer
Fully-balanced design, Class-A
Power output: up to 1.5 watts per channel @32 Ohms [recommended for power demanding headphones]
Transformer-coupled, Point-to-Point wiring, Pseudo-dual power supply
Phase Splitter for use with unbalanced components
HI / LO impedance setting

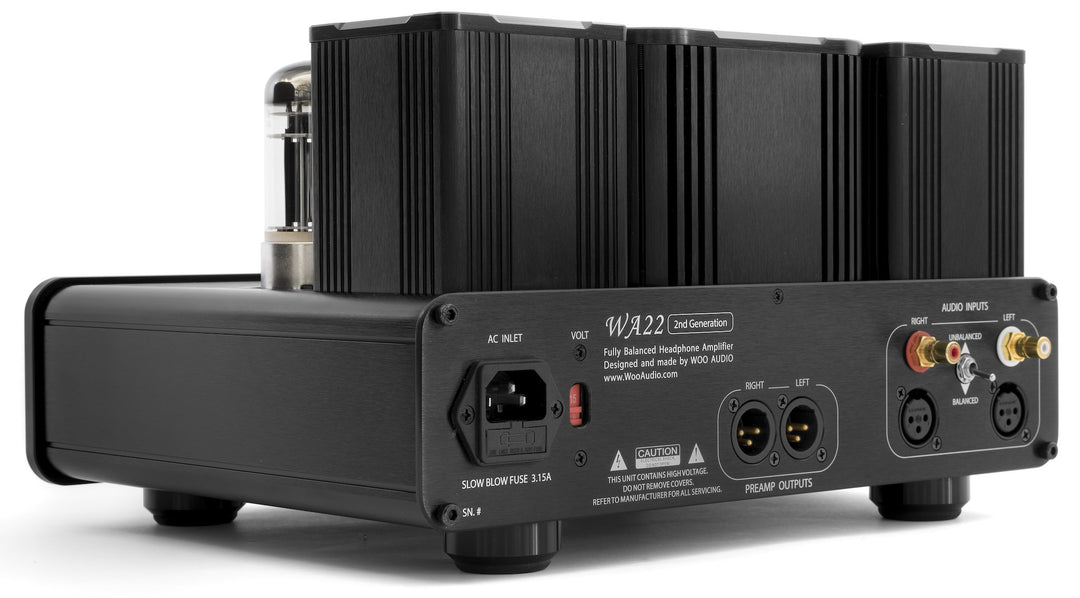

XLR input x 1, RCA input x 1
Dual 3-pin XLR (left and right channel), 4-pin XLR and 1/4" (6.3mm) stereo headphone outputs
XLR balanced PREAMP output (<50 ohms)
陽極氧化鋁製底盤,有黑色或銀色可供選擇
Self-biasing with compatible tubes [chart]
Dimensions: 7"(H), 12"(W), 10½"(D) amplifier 25 lbs.
在美國紐約設計和組裝
Three-year limited warranty [learn more]
WA22 (2nd gen) headphone amplifier/preamplifier x 1
6080 vacuum tube x 2
6SN7 vacuum tube x 2
5U4G (5U3C) rectifier tube x 1
Quick start guide
*AC power cord and audio cables are not included
